description:

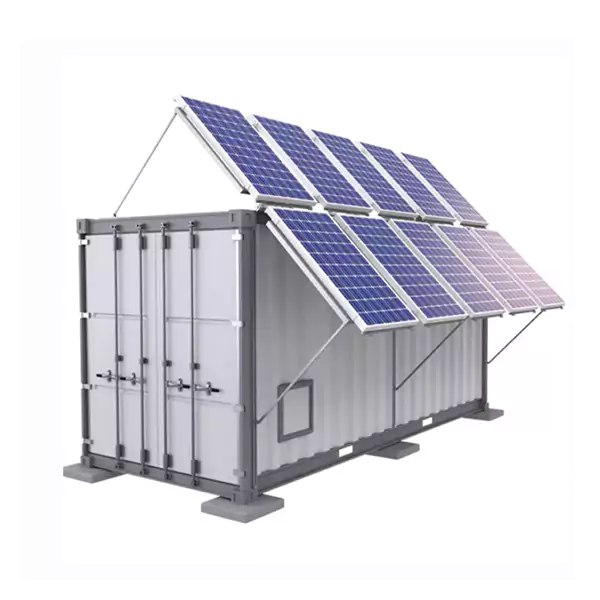

Huijue Group HJ-SG-R01 Communication Container Station is used for outdoor large-scale base station sites.
Features:
-
Supports Multiple Green Energy Sources
Integrates solar, wind power, diesel generators, and energy storage systems to achieve an energy-saving solution, with a maximum load capacity of up to 600A
The cabinet is made of lightweight aluminum alloy, allowing for manual transportation. It supports factory prefabrication and can be lifted and installed as a whole unit
The outer layer of the cabinet is made of corrosion-resistant FRP material, making it suitable for coastal environments
Combines power generation, energy storage, and communication infrastructure in a single system, enabling rapid and efficient deployment
Application:
Telecom Networks: Ideal for powering medium- to large-scale telecom stations in off-grid areas.
Other Applications: Suitable for communication base stations, smart cities, transportation, and power systems, providing stable backup power and optical fiber connectivity in edge site scenarios.
Parameters:
| Container Product Specifications |
Overall dimensions (width x length x height) |
2400mm(W)×6000mm(L)×2800mm(H) IP55 protection; |
| Installation Mode |
Landing |
| Cooling Solution |
Intelligent temperature control (Fresh air system / precision air conditioning,
energy-saving automatic switching refrigeration） |
| AC Input |
AC input voltage |
Single-phase/three-phase 380VAC input (dual input interlock) |
| Rectifier module |
50A, fully equipped 600A Shared slot with photovoltaic modules |
| Photovoltaic input |
Photovoltaic module capacity |
550Wp*12 pieces;=6.6kw |
| Photovoltaic modules |
50A(3000W)*4 |
| Wind power |
Wind power |
600W~2000W |
| Fan control module |
2KW |
| Energy storage and backup |
Lithium iron phosphate battery |
100AH, 51.2V; fully equipped with 4 groups,Energy storage 50KWH |
| Output Characteristics |
DC output voltage |
432VDC~58VDC (default 535VDC) |
| Output Configuration |
Battery: 2*600A DC: 63A*6, 32A*4, 16A*6; AC: input 32A*4,
lightning protection level C; socket: 2-way; |
| Monitoring unit system |
Signal input |
analog input (battery temperature) 4 digital dry contact inputs |
| Alarm output |
4-way dry contact |
| Communication interface |
RS485 |
| Storage capacity |
Up to 1000 historical alarm records |
| Sensor |
Temperature and humidity, smoke, access control, water immersion |
| Environment |
Operating temperature |
-20~+75℃(can be started at -40℃) |
| Storage temperature |
-40℃~+75℃ |
| Operating humidity |
5%~95%(no condensation) |
| Altitude |
≤4000m (1800m~4000m, the temperature decreases by 1ºC for
every 200m increase in altitude.) |
Typical configuration one: 140000
| Serial number |
Name |
Parameter Description |
Quantity |
Unit |
| 1 |
Container site |
5950*2500*2890 (length*width*height), container 20 feet, six-sided PU thermal insulation layer,
electrostatic floor laid inside, sufficient for 6 rack positions; |
1 |
Tower |
Typical configuration two: 162712
| Serial number |
Name |
Parameter Description |
Quantity |
Unit |
| 1 |
Container site |
5950*2500*2890 (length*width*height), container 20 feet, six-sided PU thermal insulation layer, electrostatic floor laid inside, sufficient for 6 rack positions; |
1 |
Tower |
| 2 |
Air conditioner |
3P energy-saving air conditioner, AC input 220V/380V, cabinet base station air conditioner, with power start, communication 485 interface; |
1 |
Set |
Typical configuration three: 182085
| Serial number |
Name |
Parameter Description |
Quantity |
Unit |
| 1 |
Container site |
5950*2500*2890 (length*width*height), container 20 feet, six-sided PU thermal insulation layer, electrostatic floor laid inside, sufficient for 6 rack positions; |
1 |
Tower |
| 2 |
Hybrid power supply box 600A (including AC power distribution box) |
6U, rack-mounted, AC input: 100A/3P*2 with interlocking device; AC lightning protection: Class C 30KA-60KA; AC output 63A/2P**2, 16A/1P*3, national standard socket*2; DC Output power distribution: 63A*4, 32A*4*16A*4; equipped with intelligent circuit breaker*3 channels, battery circuit breaker 125A*6; |
1 |
Set |
| 3 |
Rectifier module |
Rectifier module 50A, high efficiency |
4 |
Set |
| 4 |
Air conditioner |
3P energy-saving air conditioner, AC input 220V/380V, cabinet base station air conditioner, with power start, communication 485 interface; |
1 |
Set |
Typical configuration four: 193354
| Serial number |
Name |
Parameter Description |
Quantity |
Unit |
| 1 |
Container site |
5950*2500*2890 (length*width*height), container 20 feet, six-sided PU thermal insulation layer, electrostatic floor laid inside, sufficient for 6 rack positions; |
1 |
Tower |
| 2 |
Photovoltaic panel |
Single crystal panel complete set 550W, including adapter and installation accessories |
8 |
Set |
| 3 |
Photovoltaic module |
Photovoltaic module 50A, MPPT efficiency: ≥99% |
2 |
Set |
| 4 |
Air conditioner |
3P energy-saving air conditioner, AC input 220V/380V, cabinet base station air conditioner, with power start, communication 485 interface; |
1 |
Set |
Typical configuration five: 216696
| Serial number |
Name |
Parameter Description |
Quantity |
Unit |
| 1 |
Container site |
5950*2500*2890 (length*width*height), container 20 feet, six-sided PU thermal insulation layer, electrostatic floor laid inside, sufficient for 6 rack positions; |
1 |
Tower |
| 2 |
Dynamic environment monitoring unit |
4 RS485 serial ports, 4 DI inputs, and 4 DO dry contact outputs. The software has a web management interface. The collector can be configured through a web browser.
It supports access to the background monitoring system for centralized monitoring through SNMP or B interface. Environmental detection: smoke detector, access control, temperature and humidity, water immersion, etc. |
1 |
Set |
| 3 |
Sensor |
Environmental detection: smoke sensor, access control, temperature and humidity, water immersion, need to be applied to monitoring; |
1 |
Set |
| 4 |
Fire extinguisher |
Suspended 6kg temperature-controlled gas fire extinguishing device machine room gas fire extinguisher, heptafluoropropane |
1 |
Set |
| 5 |
Hybrid power supply box 600A (including AC power distribution box) |
6U, rack-mounted, AC input: 100A/3P*2 with interlocking device; AC lightning protection: Class C 30KA-60KA; AC output 63A/2P**2,
16A/1P*3, national standard socket*2; DC Output power distribution: 63A*4, 32A*4*16A*4; equipped with intelligent circuit breaker*3 channels, battery circuit breaker 125A*6; |
1 |
Set |
| 6 |
Rectifier module |
Rectifier module 50A, high efficiency |
4 |
Set |
| 7 |
Photovoltaic panel |
Single crystal panel complete set 550W, including adapter and installation accessories |
8 |
Set |
| 8 |
Photovoltaic module |
Photovoltaic module 50A, MPPT efficiency: ≥99% |
2 |
Set |
| 9 |
Air conditioner |
3P energy-saving air conditioner, AC input 220V/380V, cabinet base station air conditioner, with power start, communication 485 interface; |
1 |
Set |
Typical configuration six: 356974
| Serial number |
Name |
Parameter Description |
Quantity |
Unit |
| 1 |
Container site |
5950*2500*2890 (length*width*height), container 20 feet, six-sided PU thermal insulation layer, electrostatic floor laid inside, sufficient for 6 rack positions; |
1 |
Tower |
| 2 |
Dynamic environment monitoring unit |
4 RS485 serial ports, 4 DI inputs, and 4 DO dry contact outputs. The software has a web management interface. The collector can be configured through a web browser. It supports access to the background monitoring system for centralized monitoring through SNMP or B interface. Environmental detection: smoke detector, access control, temperature and humidity, water immersion, etc.; |
1 |
Set |
| 3 |
Sensor |
Environmental detection: smoke sensor, access control, temperature and humidity, water immersion, need to be applied to monitoring; |
1 |
Set |
| 4 |
Fire extinguisher |
Suspended 6kg temperature-controlled gas fire extinguishing device machine room gas fire extinguisher, heptafluoropropane |
1 |
Set |
| 5 |
Hybrid power supply box 600A (including AC power distribution box) |
6U, rack-mounted, AC input: 100A/3P*2 with interlocking device; AC lightning protection: Class C 30KA-60KA; AC output 63A/2P**2, 16A/1P*3, national standard socket*2; DC Output power distribution: 63A*4, 32A*4*16A*4; equipped with intelligent circuit breaker*3 channels, battery circuit breaker 125A*6; |
1 |
Set |
| 6 |
Rectifier module |
Rectifier module 50A, high efficiency |
4 |
Set |
| 7 |
Lithium iron phosphate battery |
100AH, rack-mounted -48V, more than 3000 charging cycles, 16S |
8 |
Set |
| 8 |
Photovoltaic panel |
Single crystal panel complete set 550W, including adapter and installation accessories |
8 |
Set |
| 9 |
Photovoltaic module |
Photovoltaic module 50A, MPPT efficiency: ≥99% |
2 |
Set |
| 10 |
Air conditioner |
3P energy-saving air conditioner, AC input 220V/380V, cabinet base station air conditioner, with power start, communication 485 interface; |
1 |
Set |
